Design of Experiment (DOE) is a systematic method to determine the relationship between factors affecting a process and the output of that process. When applied to complex systems, sub-modules, or components, DOE helps identify the main factors that most influence performance or reliability. The orthogonal matrix approach in DOE is a powerful technique that significantly shortens the search for these critical factors while controlling variability and optimizing system behavior.
Orthogonal Matrix in DOE: Concept and Benefits

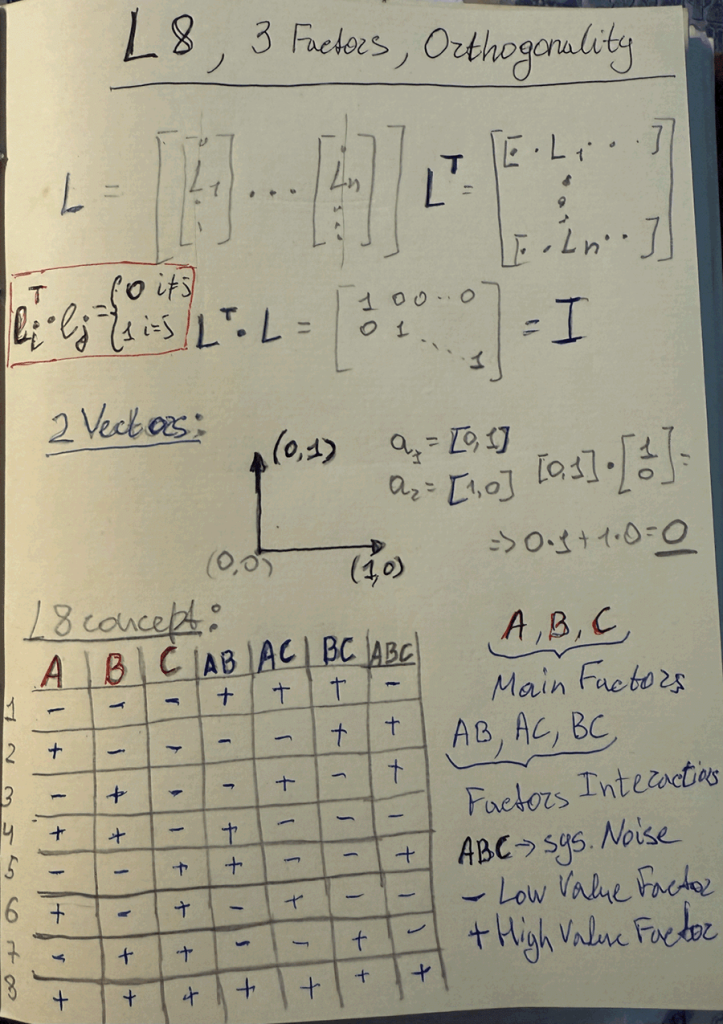

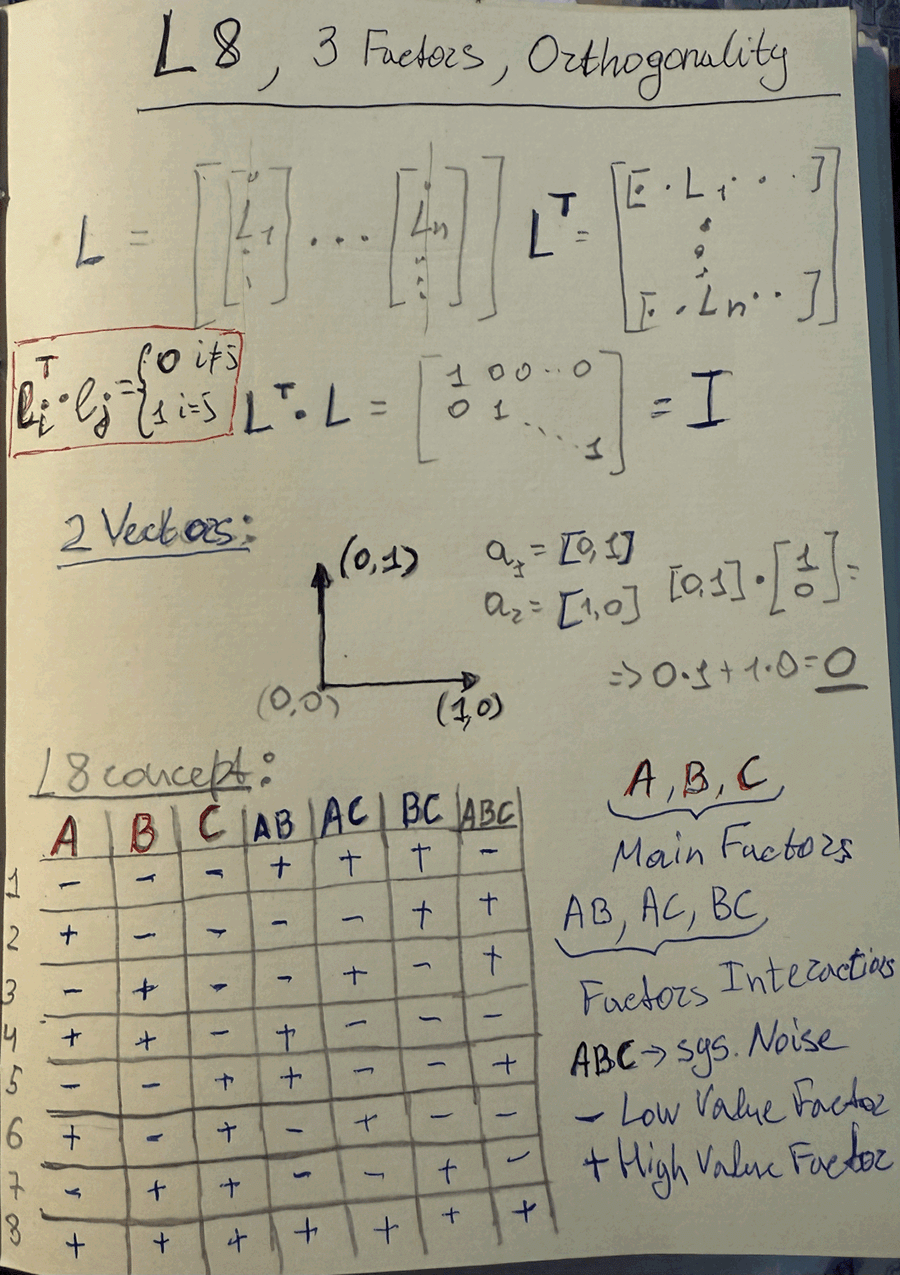

An orthogonal matrix in DOE refers to a design where the factors are arranged such that their effects on the output can be independently and unambiguously estimated. This orthogonality means the columns of the design matrix are statistically independent, resulting in zero correlation among estimated factor effects. The key benefits are:
– Efficient Experimentation: Orthogonal arrays drastically reduce the number of experimental runs compared to full factorial designs by ensuring balanced and independent variation of factors.
– Clear Main Effect Estimation: Because factor effects are unconfounded, the main effects can be identified without interference from other factors.
– Reduced Variance in Estimates: Orthogonality minimizes the variance and covariance of estimated coefficients, improving the precision of factor effect estimation.
– Cost and Time Savings: Fewer experiments mean less resource consumption, accelerating development and validation cycles.
1. Reduce Variability in the Measured Outcome: Variability in the response (e.g., performance metric, failure time, signal quality) can obscure the true effects of factors. DOE with orthogonal arrays helps identify which factors contribute most to variability. By controlling or optimizing these factors, variability is minimized, leading to more consistent and reliable outcomes.
2. Shift the Average Response to a Desired Target: After variability is controlled, the next step is to adjust factor levels to move the average output to a required or optimal value. Orthogonal designs allow systematic exploration of factor levels to achieve this shift efficiently.
How Orthogonal Arrays Shorten the Search for Main Factors
Traditional full factorial experiments require testing every possible combination of factor levels, which grows exponentially with the number of factors and levels. Orthogonal arrays, such as those developed by Taguchi, select a subset of combinations that are statistically balanced and representative. For example, a system with 4 factors each at 3 levels would require 3^4 = 81 runs in a full factorial design, but an orthogonal array design might reduce this to 9 runs while still capturing the main effects.
This reduction is possible because orthogonal arrays ensure:
– Each factor level appears equally across the experiment.
– Factor levels are combined with levels of other factors in a balanced way.
– Main effects can be independently estimated without confounding.
As a result, the experimenter can quickly identify which factors have the largest impact on variability and mean response, focusing efforts on these critical factors.
Practical Steps in Using Orthogonal Matrix DOE for System Stressing
1. Identify Factors and Levels: Determine the controllable parameters (e.g., temperature, voltage, load, speed) and select appropriate levels for each based on engineering knowledge and operational ranges.
2. Select an Orthogonal Array: Choose an array that matches the number of factors and levels. This array defines the minimal set of experiments needed.
3. Conduct Experiments: Perform the runs as per the orthogonal array, stressing the system or component under specified conditions, and measure the response.
4. Analyze Results: Calculate the average response and variability for each factor level. Use statistical tools such as Analysis of Means (ANOM) or Analysis of Variance (ANOVA) to identify significant factors.
5. Reduce Variability: Adjust factor settings to minimize variability in the output, ensuring more reliable and repeatable system behavior.
6. Shift Average Response: Fine-tune factor levels to move the average output toward the desired target, optimizing performance or reliability.
7. Confirm Optimal Settings: Validate the chosen settings with confirmatory runs to ensure the system meets the required specifications.
Reducing variability first is critical because a high-variance system can mask the true effect of factor adjustments on the mean response. By stabilizing the system response, the experimenter gains confidence that changes in the mean are due to factor adjustments rather than random noise. This approach leads to more robust and reliable system design and validation.
In summary, the orthogonal matrix approach in DOE is a strategic method to efficiently identify and optimize the main factors influencing system or component performance. By focusing initially on reducing variability and subsequently shifting the mean response, engineers can develop robust, reliable systems with fewer experiments, saving time and resources while gaining deep insight into factor effects.
